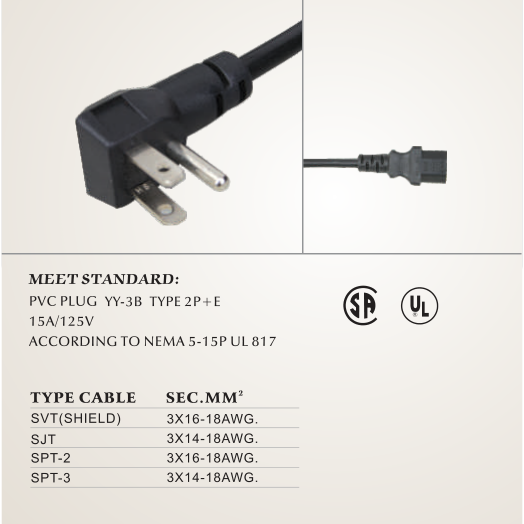

UL CSA Certified YY-3B NEMA 5-15P 3-Pin Grounded Power Plug
This high-quality 3-pin grounded power plug (PVC Plug YY-3B, Type 2P+E) is designed for reliable and safe electrical connections. Manufactured by NINGBO CHENGLONG ELECTRIC APPLIANCE CO.,LTD., this North American standard AC power plug (NEMA 5-15P) is widely compatible with various home appliances, power tools, and power cords. Compliant with UL and CSA safety standards, the YY-3B model ensures maximum durability and safety for global wholesale buyers and OEM projects.
Key Technical Specifications:
Product Type: PVC Plug YY-3B, Type 2P+E (3-Pin Grounded Power Plug)
Standard: NEMA 5-15P, UL 817
Rated Current: 15A
Rated Voltage: 125V
Approvals: CSA, UL Certified
Compatible Cable Specifications:
Please refer to the table below for the exact matching power cords for this model:
| Type Cable | SEC.MM² |
|---|---|
| SVT(SHIELD) | 3X16-18AWG. |
| SJT | 3X14-18AWG. |
| SPT-2 | 3X16-18AWG. |
| SPT-3 | 3X14-18AWG. |
